304一片式螺纹球阀

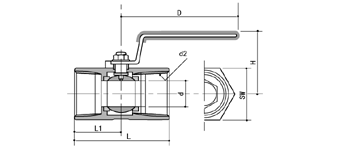

| 呼び径 | L | H | D | d | d2 | SW | L1 | |
| 8A | 1/4B | 39 | 31 | 61 | 5 | Rc1/4B | 17 | 19 |
| 10 | 3/8 | 44 | 36 | 72 | 7 | Rc3/8 | 21 | 21 |
| 15 | 1/2 | 56.5 | 41 | 85 | 9.2 | Rc1/2 | 25 | 27.5 |
| 20 | 3/4 | 59 | 46 | 85 | 12.5 | Rc3/4 | 32 | 30 |
| 25 | 1 | 71 | 50 | 105 | 16 | Rc1 | 38 | 36 |
| 32 | 11/4 | 78 | 56 | 105 | 20 | Rc11/4 | 49 | 40 |
| 40 | 11/2 | 83 | 69 | 125 | 24.5 | Rc11/2 | 53 | 42.5 |
| 50 | 2 | 100 | 72 | 125 | 32 | Rc2 | 65 | 51 |
